OsiSense XX ultrasonic sensor cylindrical M18 - Sn 0.15 m - 2NO - M12 connector - XX518A1KAM12
Out of stock
SKU
XX518A1KAM12
Details

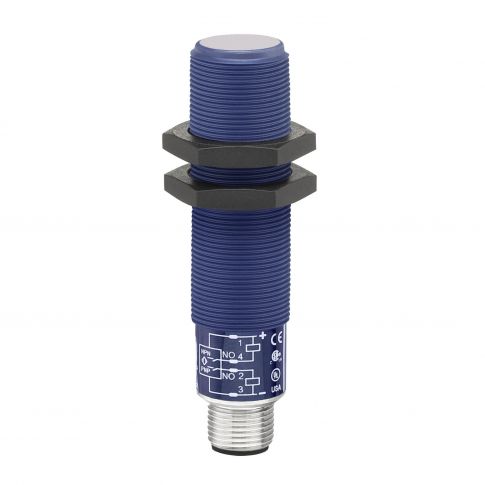

This cylindrical (diffuse system) ultrasonic sensor has a ULTEM case.
It has a supply voltage of 12V to 24V DC.
This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts.
ULTEM® high strength case makes it ideal for high temperature environments.
IP67 protection makes this product ready for the harshest environments.
It can operate in hot environments up to +50°C.
It has a standard M12 connector, compatible with all existing market sensor cabling.
It is IEC 60947-5-2 compliant.
More Information
| Attribute | Value |
|---|---|
| SKU | XX518A1KAM12 |
| product certifications | cULus |
| ambient air temperature for storage | -40-80 °C |
| ambient air temperature for operation | 0-50 °C |
| resistance to electrostatic discharge | 8 kV level 4 conforming to IEC 61000-4-2 |
| maximum delay response | 3 ms |
| maximum delay recovery | 3 ms |
| sensor type | ultrasonic sensor |
| sensor design | cylindrical M18 |
| wiring technique | 4-wire |
| range of product | Telemecanique Ultrasonic sensors XX |
| product or component type | Detektor / Sensor |
| current consumption | 60 mA |
| net weight | 0.033 kg |
| standards | IEC 60947-5-2 |
| range | Proximity |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| electrical connection | male connector M12 4 pins |
| repeat accuracy | 0.7 % |
| discrete output type | PNP and NPN |
| maximum delay first up | 350 ms |
| detection system | diffuse |
| transmission frequency | 500 kHz |
| [Sd] sensing range | 0.025-0.152 m |
| height | 18 mm |
| marking | CE |
| width | 18 mm |
| depth | 65 mm |
| vibration resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| IP degree of protection | IP67 conforming to IEC 60529 |
| material | plastic |
| shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| series name | general purpose |
| supply voltage limits | 10-28 V DC |
| enclosure material | ULTEM |
| thread type | M18 x 1 |
| resistance to electromagnetic fields | 10 V/m level 3 conforming to IEC 61000-4-3 |
| resistance to fast transients | 1 kV level 3 conforming to IEC 61000-4-4 |
| maximum switching current | 100 mA with overload and short-circuit protection |
| switching frequency | <= 80 Hz |
| discrete output function | 2 NO |
| type of output signal | discrete |
| [Sn] nominal sensing distance | 0.15-0.15 m fixed |
| maximum voltage drop | 1 V |
| threaded length | 51 mm |
| front material | silicone |
| sensor name | XX5 |
| deviation angle from 90° of object to be detected | -10-10 ° |
| beam angle | 8 ° |
| minimum size of detected object | cylinder diameter 1.6 mm |
| [Sa] assured operating distance | 0.025-0.152 m |
| blind zone | 0-19 mm |
| maximum differential travel | 0.35 mm |
