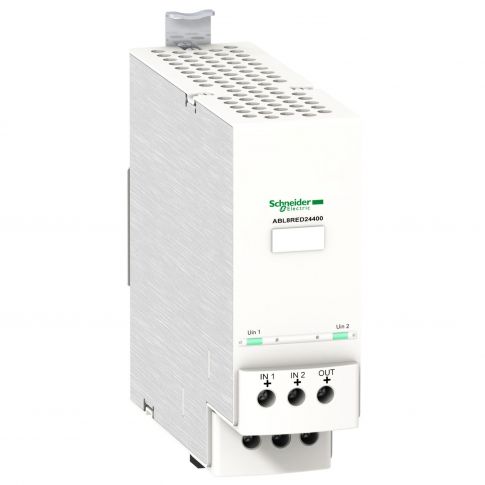

Phaseo ABL8 redundancy module - 40A - for regulated SMPS - ABL8RED24400
This ABL8 redundancy solution supplies direct current voltage.
It has a rated input of 24V to 28.8V DC, a rated output current of 40A.
This redundancy solution is designed to bring continuity to auxiliary power even during failure of one out of 2 power supply units.
It can be used to supply the nominal power to the application even if one of the power supplies is inoperable or otherwise unavailable.
It has LED diagnostics indicator available in the front for troubleshooting instantly.
It weighs 0,700kg.
It is a functionnal module for power supply for industrial use, rail mounting.
It conforms to UL 508, CSA C22.2 No 60950-1 standards.
It is certified by EAC, RCM.
This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies.
It has LED diagnostics indicator available in the front for troubleshooting instantly.
It installs on DIN rail.
It brings energy to your automated systems.
Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
| Attribute | Value |
|---|---|
| SKU | ABL8RED24400 |
| product certifications | EAC, RCM |
| relative humidity | 0-90 % during operation, 0-95 % during storage |
| ambient air temperature for storage | -40-85 °C |
| overvoltage category | class II conforming to VDE 0106-1 |
| ambient air temperature for operation | -25-60 °C |
| environmental characteristic | EMC conforming to EN 61000-6-3, safety conforming to EN/IEC 60950-1, EMC conforming to EN/IEC 61000-6-2, safety conforming to EN/IEC 61204 |
| input voltage | 24...28.8 V DC |
| output voltage | (Uin-0.2) V DC |
| range of product | Phaseo |
| name of test | induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3, radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3, rapid transient conforming to IEC 61000-4-4 level 3, surge conforming to EN/IEC 61000-4-5 level 2, conducted/radiated emissions conforming to EN 55022 class B, electrostatic discharges conforming to EN/IEC 61000-4-2, emission conforming to EN 61000-6-3, emission conforming to EN 50081-1 |
| product or component type | Relay & Power Supply |
| net weight | 0.7 kg |
| standards | UL 508, CSA C22.2 No 60950-1 |
| range | Power Supply |
| input current | 20 A |
| maximum output current | 40 A |
| output coupling | parallel |
| connections - terminals | for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8, for diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14 |
| output protection type | against overload, protection technology: external protection by power supply, against short-circuits, protection technology: external protection by power supply |
| compatibility code | ABL8R |
| marking | CE |
| input voltage limits | 22...30 V |
| vibration resistance | 2 gn (f= 11.9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm (f= 3-11.9 Hz) conforming to EN/IEC 61131-2 |
| operating altitude | 2000 m |
| dielectric strength | 500 V between output and ground, 500 V between input and ground |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| local signalling | 1 LED per input (green) for power supply status, 1 relay for power supply status |
| fixing mode | by clips on 35 mm symmetrical DIN rail, operating position: horizontal, by clips on 35 mm symmetrical DIN rail, operating position: vertical |
| MTBF reliability | 2488391 H at 24 V DC with UTE C80-810 calculation method |
| number of output channels | 1 |
