Schneider Electric

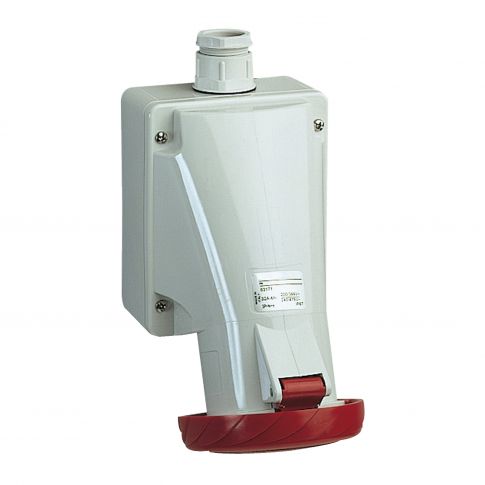

PratiKa industrial socket - 32 A - 3P + N + E - 380...415 V AC - IP67 - 83171
Out of stock
SKU
83171
Details
This Pratika industrial socket with completely loosened captive screws connection is wall mounted.
It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC.
The dimensions of the base plate are (W) 106mm x (H) 194mm.
The degree of protection is IP67 and IK08.
The fire resistance is 850°C.
The cable entries are for flexible or rigid cables.
The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables.
The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage.
The frequency is 50Hz or 60Hz.
The clock position of contact is 6h.
More Information
| Attribute | Value |
|---|---|
| SKU | 83171 |
| relative humidity | 50-50 % at 40-40 °C, 70-70 % at 30-30 °C, 90-90 % at 20-20 °C |
| ambient air temperature for operation | 35-35 °C ( 86400 s ) |
| cable cross section | 2.5-10 mm² |
| product or component type | Industrial Plug & Socket |
| net weight | 0.557 kg |
| mounting mode | wall-mounted |
| standards | EN 60309-2, EN 60309-1 |
| device short name | PratiKa socket |
| range | Wall Mounted Socket |
| outlet standard | industrial |
| IK degree of protection | IK08 conforming to EN 62262 |
| product name | PratiKa socket |
| contacts material | pins: stainless steel, sleeves: nickel plated brass, springs: stainless steel |
| plug, socket, control station shape | angled |
| ground lug clockwise position | 6 h |
| network frequency | 50/60 Hz |
| connections - terminals | captive screws, completely loosened |
| height | 194 mm |
| compatibility code | PratiKa socket |
| width | 106 mm |
| depth | 154 mm |
| IP degree of protection | IP67 conforming to IEC 60529 |
| [In] rated current | 32 A |
| network type | AC |
| poles description | 3P + N + E |
| colour | grey (RAL 7035) |
| [Ue] rated operational voltage | 380...415 V |
| market segment | small commercial, residential |
| cable entry | cable gland |
| fire resistance | 850 °C conforming to IEC 60695-2-11 |
| thread type | Pg 21 |
| plug, socket category | low voltage |
| cable outer diameter | 11.5-21 mm |
| plug, socket material | housing: self-extinguishing engineering polymer |
| voltage colour | red |
| base dimension | 106 x 130 mm |
