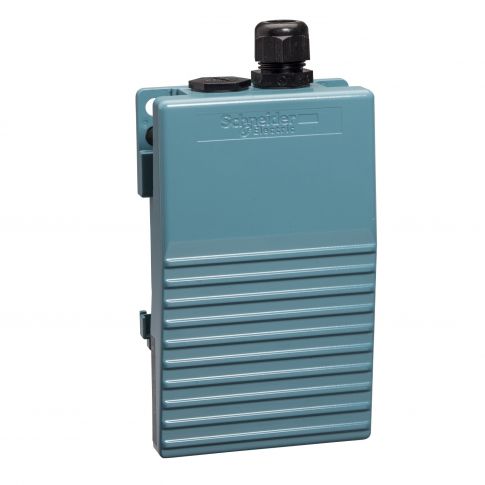

Preventa XPE single foot switch - IP66 - without cover - metallic - blue - 2 NC + 2 NO - XPEM211
Out of stock
SKU
XPEM211
Details
This XPE blue, metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run.
It is designed such that the operating pedal is close to the ground and at a comfortable angle.
It is delivered without a protective cover, this makes it suitable for applications where the issuing of the start instruction presents a reduced level of danger.
It incorporates snap action contacts with positive opening operation.
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.
Its 2 step contact operation makes it ideal for applications involving 2-speed machines.
More Information
| Attribute | Value |
|---|---|
| SKU | XPEM211 |
| product certifications | CSA, FIMKO |
| ambient air temperature for storage | -40-70 °C |
| overvoltage category | class I conforming to EN/IEC 61140, class I conforming to NF C 20-030 |
| ambient air temperature for operation | -25-70 °C |
| range of product | Harmony XPE |
| product or component type | Sinyal & Kontrol |
| net weight | 1.2 kg |
| standards | EN/IEC 60947-5-1, VDE 0660-200 |
| mechanical durability | 15000000 cycles |
| device short name | XPEM |
| range | Foot Switch & Pendant |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| contact operation | 2 steps |
| positive opening | with conforming to EN/IEC 60947-5-1 appendix K |
| foot switch type | single foot switch |
| rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| trigger mechanism | without trigger mechanism |
| connections - terminals | screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| compatibility code | XPEM |
| vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| colour | blue |
| material | metal |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| [Ui] rated insulation voltage | 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14, 500 V (pollution degree 3) conforming to EN/IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C |
| protective treatment | TC |
| contacts type and composition | 2 NC + NO |
| shock resistance | 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27 |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 mOhm conforming to NF C 93-050 method A |
