Schneider Electric

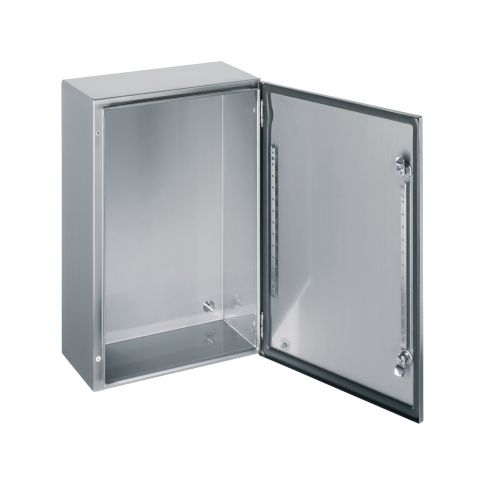

SPACIAL S3X stainless 304L, Scotch Brite® finish, H300xW300xD150 mm. - NSYS3X3315
Out of stock
SKU
NSYS3X3315
More Information
| Attribute | Value |
|---|---|
| SKU | NSYS3X3315 |
| product certifications | CAN/CSA 22, UL 508 type A |
| environmental characteristic | specific hygiene, corrosive |
| body type | single piece body, cross-shaped structure, gutter shaped front rail |
| door opening side | reversible (120 °) |
| number of doors | front face: 1 door(s) |
| product or component type | Panel Industri & Kontrol Temperatur |
| net weight | 4.062 kg |
| standards | IEC 62208 |
| range | Panel Tembok (Wall Mounted) |
| IK degree of protection | IK10 conforming to IEC 62262 |
| product name | Spacial S3X |
| removable parts | door by hinges |
| thickness | 1.5 mm |
| IP degree of protection | IP66 conforming to IEC 60529 |
| device application | multi-purpose |
| material | lock: zamak, hinge: stainless steel, body and door: stainless steel 304L |
| surface finish | body and door: Scotch-Brite® brushed, lock: chromium plated |
| mounting plate description | without mounting plate |
| device composition | 1 body, 1 door, 1 lock: door |
| accessibility for operation | front |
| type of gland plate | without gland plate |
| installation accessory type | wall-mounting |
| enclosure nominal height | 300 mm |
| lock type | 3 mm double-bar lock |
| door type | plain |
| enclosure nominal depth | 150 mm |
| enclosure nominal width | 300 mm |
Technical Documents
