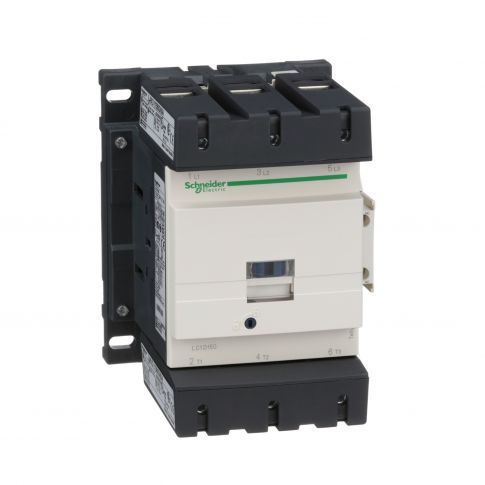

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 220 V AC 50/60 Hz coil - LC1D150M7
Out of stock
SKU
LC1D150M7
Details
TeSys D contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V).
It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals.
For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability.
Compact (120mm width), mounting on 2 DIN-rails or screw fixing.
Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
More Information
| Attribute | Value |
|---|---|
| SKU | LC1D150M7 |
| product certifications | CCC, LROS (Lloyds register of shipping), BV, GL, RINA, GOST, CSA, DNV, UL |
| ambient air temperature for storage | -60-80 °C |
| overvoltage category | III |
| pollution degree | 3 |
| ambient air temperature for operation | -40-60 °C, 60-70 °C with derating |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| motor power hp | 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| [Icw] rated short-time withstand current | 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit, 250 A 40 °C - 10 min for power circuit, 580 A 40 °C - 1 min for power circuit, 1200 A 40 °C - 10 s for power circuit, 1400 A 40 °C - 1 s for power circuit |
| range of product | TeSys D |
| product or component type | Kontaktor |
| net weight | 2.5 kg |
| standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 |
| mechanical durability | 8 Mcycles |
| device short name | LC1D |
| range | TeSys D |
| average impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| [Ie] rated operational current | 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| product name | TeSys D |
| minimum switching current | 5 mA for signalling circuit |
| mechanical robustness | vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 4 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 6 Gn for 11 ms |
| power dissipation per pole | 24 W AC-1, 13.5 W AC-3 |
| [Ith] conventional free air thermal current | 200 A (at 60 °C) for power circuit |
| control circuit type | AC at 50/60 Hz |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| contactor application | motor control, resistive load |
| contactor coil voltage | 220 V AC standard |
| insulation resistance | > 10 MOhm for signalling circuit |
| rated breaking capacity | 1400 A at 440 V for power circuit conforming to IEC 60947 |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 1660 A at 440 V for power circuit conforming to IEC 60947 |
| power range | 30-50 kW at 200-240 V 3 phases, 55-100 kW at 380-440 V 3 phases, 55-100 kW at 480-500 V 3 phases |
| pole contact composition | 3 NO |
| motor starter type | direct on-line contactor |
| auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| operating time | 20...35 ms closing, 40...75 ms opening |
| protective cover | with |
| hold-in power consumption in VA | 2-18 VA 60 Hz cos phi 0.9 (at 20 °C), 2-18 VA 50 Hz cos phi 0.9 (at 20 °C) |
| inrush power in VA | 280-350 VA 60 Hz cos phi 0.9 (at 20 °C), 280-350 VA 50 Hz cos phi 0.9 (at 20 °C) |
| connections - terminals | control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, power circuit: connector 1 cable(s) 10-120 mm²flexible without cable end, power circuit: connector 2 cable(s) 10-50 mm²flexible without cable end, power circuit: connector 1 cable(s) 10-120 mm²flexible with cable end, power circuit: connector 2 cable(s) 10-50 mm²flexible with cable end, power circuit: connector 1 cable(s) 10-120 mm²solid without cable end, power circuit: connector 2 cable(s) 10-50 mm²solid without cable end |
| height | 158 mm |
| mounting support | plate, rail |
| compatibility code | LC1D |
| width | 120 mm |
| depth | 136 mm |
| operating altitude | 0...3000 m |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| poles description | 3P |
| tightening torque | control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm |
| electrical durability | 0.85 Mcycles 150 A AC-3 at Ue <= 440 V, 1 Mcycles 200 A AC-1 at Ue <= 440 V |
| [Ue] rated operational voltage | power circuit: <= 300 V DC, power circuit: <= 1000 V AC 25...400 Hz |
| utilisation category | AC-4, AC-3, AC-1 |
| [Ui] rated insulation voltage | power circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified, power circuit: 1000 V conforming to IEC 60947-4-1 |
| auxiliary contact composition | 1 NO + 1 NC |
| control circuit voltage limits | 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz, 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz |
| contact compatibility | M13 |
| associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 315 A gG at <= 690 V coordination type 1 for power circuit, 250 A gG at <= 690 V coordination type 2 for power circuit |
| coil technology | built-in bidirectional peak limiting diode suppressor |
| flame retardance | V1 conforming to UL 94 |
| minimum switching voltage | 17 V for signalling circuit |
| maximum operating rate | 1200 cyc/h 60 °C |
| signalling circuit frequency | 25...400 Hz |
| protective treatment | TH conforming to IEC 60068-2-30 |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| motor power kW | 40 kW at 220...230 V AC 50/60 Hz (AC-3), 75 kW at 380...400 V AC 50/60 Hz (AC-3), 80 kW at 415...440 V AC 50/60 Hz (AC-3), 90 kW at 500 V AC 50/60 Hz (AC-3), 100 kW at 660...690 V AC 50/60 Hz (AC-3), 75 kW at 1000 V AC 50/60 Hz (AC-3), 22 kW at 400 V AC 50/60 Hz (AC-4) |
| heat dissipation | 3-4.5 W at 50/60 Hz |
