TeSys D - contactor coil - LXD1 - 110 V AC 50/60 Hz for 9… 38 A contactor - LXD1F7
Out of stock
SKU
LXD1F7
Details

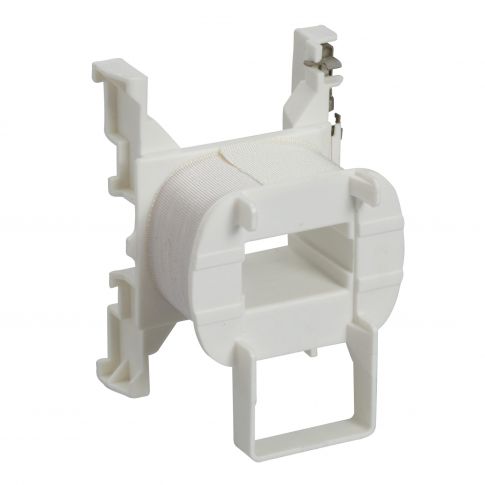

TeSys D replacement coil 110V AC 50/60Hz, for TeSys D contactors.
To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40.
It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).
More Information
| Attribute | Value |
|---|---|
| SKU | LXD1F7 |
| ambient air temperature for operation | -5-60 °C |
| range of product | TeSys D, TeSys D control relay |
| product or component type | Kontaktor |
| net weight | 0.07 kg |
| mechanical durability | 15 Mcycles |
| device short name | LXD1 |
| range | TeSys D |
| product compatibility | LC1D09...D38, CAD, LC1DT20...DT40 |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| control circuit type | AC at 50/60 Hz |
| hold-in power consumption in VA | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C), 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| inrush power in VA | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| control circuit voltage limits | drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
| coil technology | without built-in suppressor module |
| maximum operating rate | 3600 cyc/h 60 °C |
| heat dissipation | 2-3 W at 50/60 Hz |
| average resistance | 124.1 Ohm at 20 °C |
| inductance of closed circuit | 4.6 H |
