TeSys F - contactor coil - LX1FJ - 220...230 V AC 40...400 Hz - LX1FJ220
Out of stock
SKU
LX1FJ220
Details

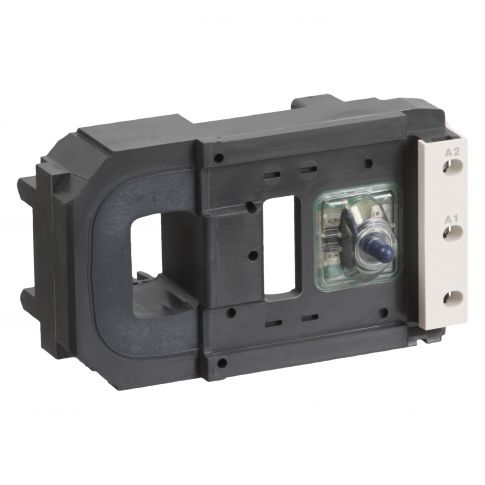

TeSys F AC coil 220/230V 40-400Hz (voltage code M7/P7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400.
It operates in voltage limits 0.85-1.1 Uc and environments until 55°C.
It provides high operating rates to the contactor, until 2400 cycles/hour.
Green Premium compliant (RoHS/REACh).
More Information
| Attribute | Value |
|---|---|
| SKU | LX1FJ220 |
| ambient air temperature for operation | -5-55 °C |
| range of product | TeSys F |
| product or component type | Kontaktor |
| net weight | 1 kg |
| mechanical durability | 10 Mcycles |
| device short name | LX1FJ |
| range | TeSys F |
| product compatibility | LC1F400 |
| [Uc] control circuit voltage | 220...230 V AC 40...400 Hz |
| range compatibility | TeSys F LC1F contactor |
| control circuit type | AC at 40...400 Hz |
| operating time | 100...170 ms opening, 40...75 ms closing |
| hold-in power consumption in VA | 15-15 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| inrush power in VA | 1075-1075 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| control circuit voltage limits | operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C), drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| coil technology | without built-in suppressor module |
| maximum operating rate | 2400 cyc/h 55 °C |
| heat dissipation | 14-14 W at 40...400 Hz |
| average resistance | 37 Ohm inrush at 20 °C, 1030 Ohm holding at 20 °C |
| inductance of closed circuit | 5.1 H |
