TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption - LX9FG220
Out of stock
SKU
LX9FG220
Details

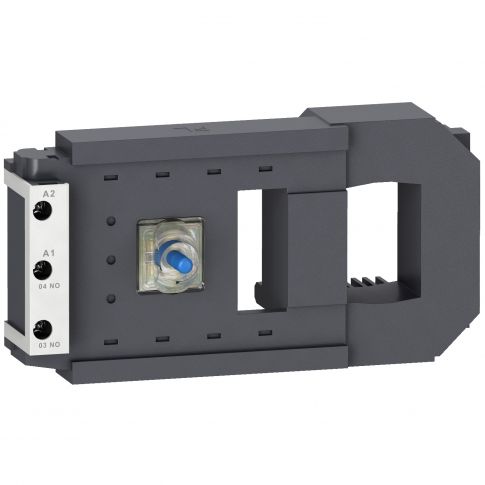

TeSys F AC coil 220/230V 40-400Hz (voltage code M7/P7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225.
It operates in voltage limits 0.85-1.1 Uc and environments until 55°C.
It provides high operating rates to the contactor, until 2400 cycles/hour.
Green Premium compliant (RoHS/REACh).
More Information
| Attribute | Value |
|---|---|
| SKU | LX9FG220 |
| ambient air temperature for operation | -5-55 °C |
| range of product | TeSys F |
| product or component type | Kontaktor |
| net weight | 0.55 kg |
| mechanical durability | 10 Mcycles |
| device short name | LX9FG |
| range | TeSys F |
| product compatibility | LC1F185, LC1F225 |
| [Uc] control circuit voltage | 220...230 V AC 40...400 Hz |
| range compatibility | TeSys F LC1F contactor |
| control circuit type | AC at 40...400 Hz low consumption |
| operating time | 130 ms opening, 35 ms closing |
| hold-in power consumption in VA | 8.9-10.9 VA 40...400 Hz (at 20 °C) |
| inrush power in VA | 950-1180 VA 40...400 Hz (at 20 °C) |
| control circuit voltage limits | operational: 0.85...1.1 Uc (at 55 °C), drop-out: 0.35...0.55 Uc (at 55 °C) |
| coil technology | without built-in suppressor module |
| maximum operating rate | 2400 cyc/h 55 °C |
| heat dissipation | 8-9.8 W |
| average resistance | 1680 Ohm holding at 20 °C, 42.1 Ohm inrush at 20 °C |
| inductance of closed circuit | 5.84 H |
