TeSys GV2-Circuit breaker-thermal-magnetic- 0.4...0.63 A -screw clamp terminals - GV2ME04
In stock
SKU
GV2ME04
Details

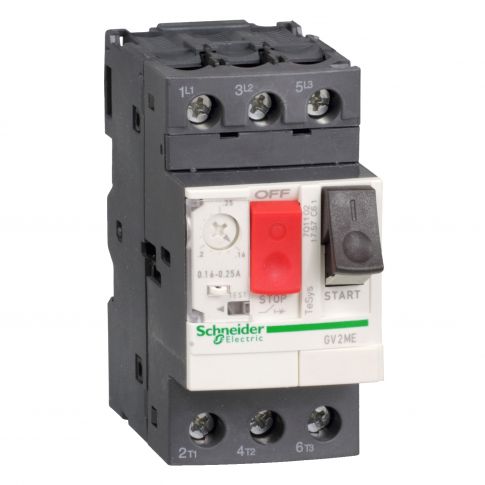

TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V.
It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V.
Connection by screw clamp terminals.
Start-stop control by push-button guaranteed for 100 000 cycles AC-3.
Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
More Information
| Attribute | Value |
|---|---|
| SKU | GV2ME04 |
| product certifications | EAC, CCC, LROS (Lloyds register of shipping), BV, RINA, CSA, UL, ATEX, IECEE CB Scheme, DNV-GL |
| ambient air temperature for storage | -40-80 °C |
| ambient air temperature for operation | -20-60 °C |
| magnetic tripping current | 8-8 A |
| range of product | TeSys GV2 |
| operating position | any position |
| product or component type | motor circuit breaker |
| net weight | 0.26 kg |
| standards | EN/IEC 60947-2, UL 60947-4-1, CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1 |
| mechanical durability | 100000 cycles |
| device short name | GV2ME |
| breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| trip unit technology | thermal-magnetic |
| range | TeSys GV |
| IK degree of protection | IK04 |
| trip unit rating | 0.4-0.63 A |
| product name | TeSys GV2 |
| power dissipation per pole | 2.5 W |
| [Ith] conventional free air thermal current | 0.63 A conforming to IEC 60947-4-1 |
| direct connector | without |
| network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| height | 89 mm |
| compatibility code | GV2ME |
| width | 45 mm |
| depth | 78.5 mm |
| operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [In] rated current | 0.63 A |
| network type | AC |
| poles description | 3P |
| tightening torque | 1.7 N.m on screw clamp terminals |
| electrical durability | 100000 cycles for AC-3 at 440 V |
| device application | motor |
| control type | push-button |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| fixing mode | 35 mm symmetrical DIN rail: clipped, panel: screwed (with adaptor plate) |
| utilisation category | category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | yes conforming to IEC 60947-1 |
| maximum operating rate | 25 cyc/h |
| protective treatment | TH |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
| motor power kW | 0.12-0.12 kW at 400/415 V AC 50/60 Hz, 0.18-0.18 kW at 400/415 V AC 50/60 Hz, 0.37-0.37 kW at 690 V AC 50/60 Hz |
| phase failure sensitivity | yes conforming to IEC 60947-4-1 |
| rated duty | continuous conforming to IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
