Schneider Electric

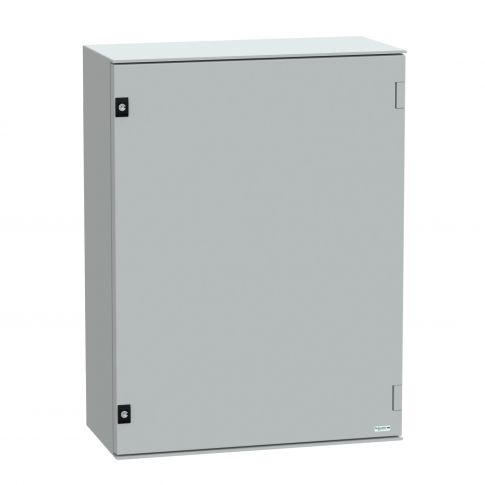

Thalassa PLM wall-mounting enclosure polyester monobloc IP66 H847xW636xD300mm - NSYPLM86G
Out of stock
SKU
NSYPLM86G
Details
Thalassa PLM wall-mounting polyester enclosure monobloc.
847 x 636 x 300 mm.
Built-in canopy, one piece moulded with notches in the rear.
Without mounting plate.
2 locks (3 mm double-bar lock).
Accessible front.
Polyester reinforced with fibreglass.
Grey RAL 7035.
IP66, IK10, NEMA (13,4X) 960°C fire resistance.
More Information
| Attribute | Value |
|---|---|
| SKU | NSYPLM86G |
| product certifications | UL |
| ambient air temperature for operation | -40-80 °C |
| enclosure mounting | wall mounted |
| body type | built-in canopy, one piece moulded with notches in the rear |
| product or component type | Panel Industri & Kontrol Temperatur |
| standards | IEC 62208, NEMA classification 4X, NEMA classification 13 |
| device short name | PLM |
| range | Panel Tembok (Wall Mounted) |
| IK degree of protection | IK10 conforming to IEC 62262 |
| product name | Thalassa PLM |
| removable parts | door by hinges |
| number of locks | 2 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| colour | grey (RAL 7035) |
| device application | multi-purpose |
| material | polyester reinforced with fibreglass |
| fire resistance | 960 °C conforming to IEC 62208 |
| electrical insulation class | class II |
| mounting plate description | without mounting plate |
| device composition | 1 body, 1 door, 2 lock |
| accessibility for operation | front |
| enclosure nominal height | 847 mm |
| lock type | 3 mm double-bar lock |
| door type | plain |
| enclosure nominal depth | 300 mm |
| enclosure nominal width | 636 mm |
