Schneider Electric

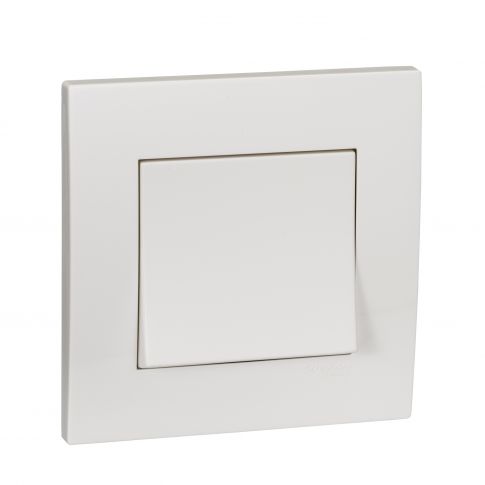

Vivace 10A 250V 1 Gang 2 Way Switch - KB31_WE_G3
In stock
SKU
KB31_WE_G3
More Information
Attribute | Value |
---|---|
SKU | KB31_WE_G3 |
range | Vivace |
product or component type | Saklar, Stop Kontak & Aksesoris |
number of gangs | 1 gang |
colour tint | white |
switch function | 2-way |
[Ue] rated operational voltage | 250 V AC |
network frequency | 50 Hz |
actuator | rocker |
device mounting | flush |
fixing center | 60.3 mm |
embedding depth | 35 mm |
material | polycarbonate: surround, polycarbonate: grid plate, polycarbonate: base |
ambient air temperature for operation | -5-40 °C |
clamping connection capacity | 2.5 mm² |
connections - terminals | pillar terminal |
height | 87 mm |
width | 87 mm |
device presentation | complete mechanism |
fixing mode | by screw M3.5 |
standards | IEC 60669-1, MS IEC 60669-1, SS 227 |
device application | lighting |
relative humidity | 0-95 % |
environmental characteristic | indoor use |
contacts material | brass and phosphor bronze |
rated current | 16 AX at 250 V AC, fluorescent, 16 AX at 250 V AC, inductive |
