Schneider Electric

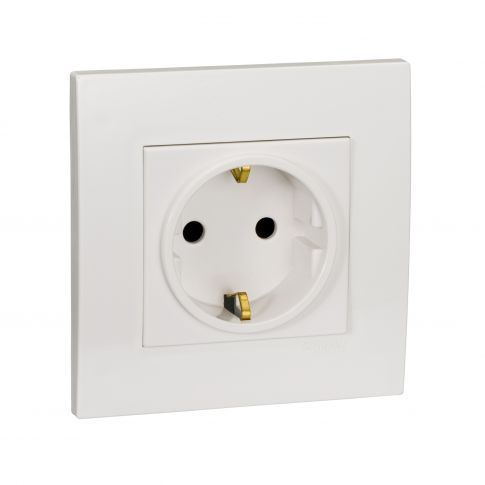

Vivace 16A SCHUKO-SOCKET OUTLET WITH SHUTTER - KB426_16S_WE_G3
In stock
SKU
KB426_16S_WE_G3
More Information
| Attribute | Value |
|---|---|
| SKU | KB426_16S_WE_G3 |
| range | Vivace |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 1 gang |
| network frequency | 50 Hz |
| device mounting | flush |
| fixing center | 60.3 mm |
| embedding depth | 35 mm |
| material | polycarbonate: surround, polycarbonate: grid plate, nylon: base |
| ambient air temperature for operation | -5-40 °C |
| clamping connection capacity | 2.5 mm² |
| connections - terminals | pillar terminal |
| height | 86 mm |
| width | 86 mm |
| device presentation | complete mechanism |
| fixing mode | by screw M3.5 |
| standards | IEC 60884 |
| device application | power supply |
| relative humidity | 0-95 % |
| environmental characteristic | indoor use |
| contacts material | brass and phosphor bronze |
| rated current | 16 A at 250 V AC, resistive, 16 A at 250 V AC, inductive |
Technical Documents
