Schneider Electric

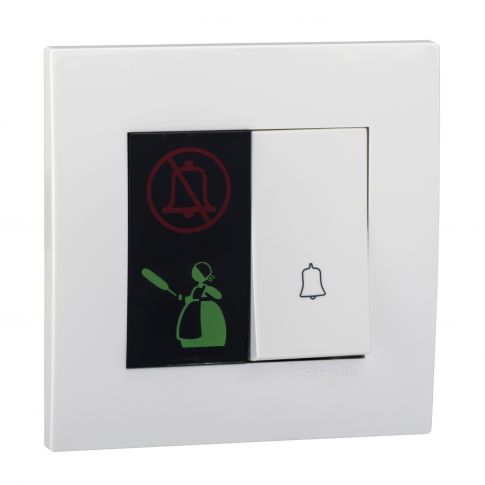

Vivace Do Not Disturb and Clean Up Room with Bell Press - 10A 250V 1 gang 1 way switch - KB31BD_C_WE
Out of stock
SKU
KB31BD_C_WE
More Information
| Attribute | Value |
|---|---|
| SKU | KB31BD_C_WE |
| range | Vivace |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 1 gang |
| colour tint | white |
| switch function | 1-way |
| [Ue] rated operational voltage | 250 V AC |
| network frequency | 50 Hz |
| actuator | push-button |
| device mounting | flush |
| fixing center | 60.3 mm |
| embedding depth | 35 mm |
| material | polycarbonate: surround, polycarbonate: grid plate, nylon: base |
| ambient air temperature for operation | -5-40 °C |
| clamping connection capacity | <= 1.5 mm² |
| connections - terminals | pillar terminal |
| height | 86 mm |
| width | 86 mm |
| device presentation | complete mechanism |
| fixing mode | by screw M3.5 |
| standards | IEC 60669-1, MS IEC 60669-1, SS 227 |
| device application | bell switch |
| relative humidity | 0-95 % |
| environmental characteristic | indoor use |
| contacts material | brass and phosphor bronze |
| rated current | 10 A at 250 V AC, inductive, 10 A at 250 V AC, resistive |
