Schneider Electric

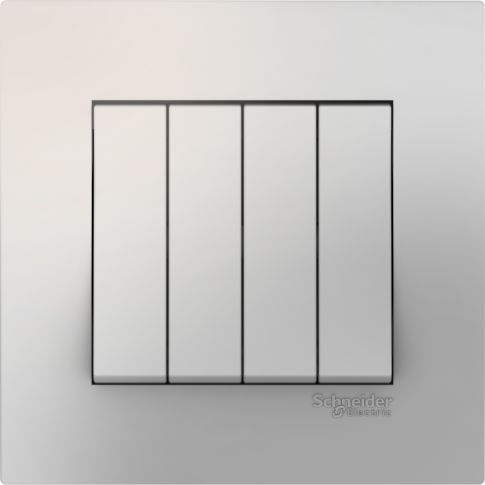

Vivace-one way switch 16 AX 250V-1 module -White - KB34S_1_WE_G3
In stock
SKU
KB34S_1_WE_G3
More Information
| Attribute | Value |
|---|---|
| SKU | KB34S_1_WE_G3 |
| range | Vivace |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 4 gangs |
| colour tint | white |
| switch function | 1-way |
| [Ue] rated operational voltage | 250 V AC |
| IP degree of protection | IP20 |
| network frequency | 50 Hz |
| actuator | rocker |
| device mounting | flush |
| embedding depth | 24 mm |
| surface finish | glossy |
| material | polycarbonate: surround, polycarbonate: grid plate, polycarbonate: dolly, brass: terminal cover, nylon: base, nylon: actuator, silver plated copper: bridge |
| ambient air temperature for operation | -5-40 °C |
| clamping connection capacity | <= 2 x 2.5 mm² for rigid or stranded cable(s) |
| connections - terminals | 8 screw terminals |
| depth | 36.5 mm |
| height | 86 mm |
| width | 86 mm |
| net weight | 0.0829 kg |
| device presentation | complete mechanism |
| fixing mode | by screw M3.5 |
| standards | IEC 60669 |
| device application | lighting |
| relative humidity | 0-95 % |
| environmental characteristic | indoor use |
| type of packing | box |
| surface treatment | untreated |
| contacts material | brass and phosphor bronze |
| dielectric strength | 2000 V |
| rated current | 10 AX at 250 V AC, inductive, 10 AX at 250 V AC, resistive |
