Schneider Electric

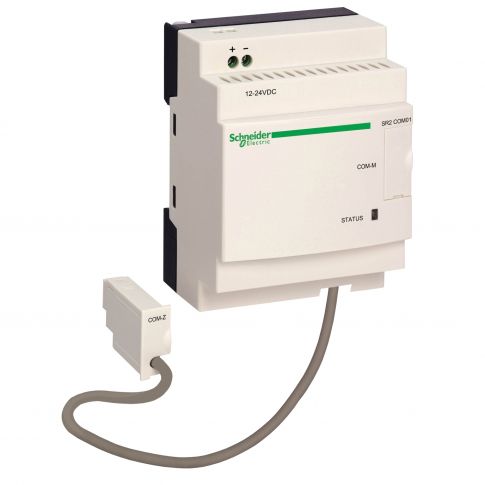

Zelio Logic communication interface - for smart relay Zelio Logic - SR2COM01
Out of stock
SKU
SR2COM01
Details
This SR2 communication interface has a coil control voltage of 12V-24V DC.
It can transfer program, send alarm to e-mail,and send alarm/receive instruction.
It monitors or remotes control of machine or installation that operate without personnel.
Communication interface allows messages, telephone numbers, and calling.
It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.
More Information
| Attribute | Value |
|---|---|
| SKU | SR2COM01 |
| product certifications | GOST, CSA, UL, C-Tick |
| relative humidity | 95-95 % without condensation or dripping water |
| ambient air temperature for storage | -40-70 °C |
| pollution degree | 2 conforming to EN/IEC 61131-2 |
| ambient air temperature for operation | -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| environmental characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| data backed up | flash memory |
| range of product | Zelio Logic |
| product or component type | Relay & Power Supply |
| net weight | 0.2 kg |
| standards | EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 60068-2-6 Fc, EN/IEC 60068-2-27 Ea |
| range | Smart Relay |
| product compatibility | SR2E....., SR.B..... |
| [Us] rated supply voltage | 12...24 V DC |
| electrical connection | 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol for link with the modem, AT commands, 1 cable Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1) |
| insulation | 1780 V optocoupler, connector type: Com-Z specific to Zelio, by the cable SR2 CBL07, connector type: Com-M specific to Zelio |
| reverse polarity protection | with |
| connections - terminals | screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| power dissipation in W | 1.1 W |
| operating altitude | 2000 m |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| tightening torque | 0.5 N.m |
| associated fuse rating | 1 A |
| kit composition | 1 x SR2CBL07, modem communication interface |
| function available | send alarm/receive instruction, send alarm to e-mail address, transfer program, update firmware monitoring |
| supply voltage limits | 10-28.8 V |
| disturbance radiated/conducted | class B conforming to EN 55022-11 group 1 |
| maximum supply current | 30 mA 12 V, 30 mA 24 V, 550 A |
| maximum altitude transport | 3048 m |
| electrical data recording | telephone/e-mail, discrete and digital value, date and time |
| number of messages | 28 |
