Schneider Electric

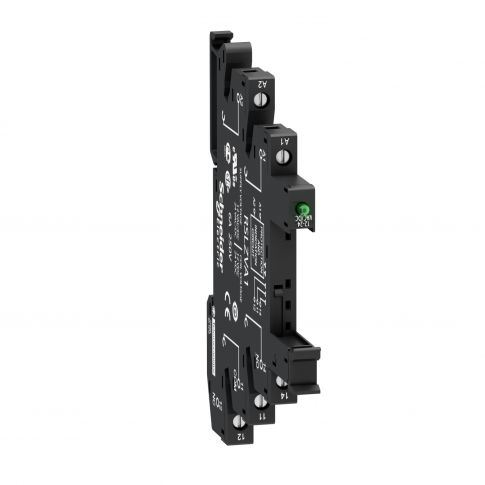

Zelio Relay screw socket equipped with LED and protection circuit, 230 V - RSLZVA4
Out of stock
SKU
RSLZVA4
Details
This Zelio RSL plug-in socket with LED indicator has a rated voltage of 230V AC/DC.
It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail.
It helps to reduce the size of enclosures and increases machine reliability: you can mount nearly everywhere.
It is compatible with plug in control relay.
Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
More Information
| Attribute | Value |
|---|---|
| SKU | RSLZVA4 |
| product certifications | GOST, CSA |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -40-55 °C |
| range of product | Harmony Relay |
| product or component type | Relay & Power Supply |
| net weight | 0.023 kg |
| standards | UL 508, IEC 61984 |
| device short name | RSLZ |
| range | Plug In Relay |
| product compatibility | plug-in relay RSL with 1 C/O contact at 60 V DC, plug-in relay RSL |
| [Ith] conventional free air thermal current | 6 A |
| contact terminal arrangement | separate |
| group of product | RSL_CON_230 |
| connections - terminals | connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| compatibility code | RSLZ |
| marking | CE |
| dielectric strength | 2500 V |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| tightening torque | < 0.5 N.m for M2.5 screw(s) |
| [Ue] rated operational voltage | < 300 V AC |
| fixing mode | plastic compression spring (35 mm symmetrical DIN rail) |
| device presentation | basic element |
| sale per indivisible quantity | 10 |
| rated operational voltage limits | 184...264.5 V |
| shape of pin | flat |
| CAD overall width | 6.2 mm |
| CAD overall depth | 95 mm |
| CAD overall height | 78.6 mm |
| switching voltage | 230 V AC/DC |
