Schneider Electric

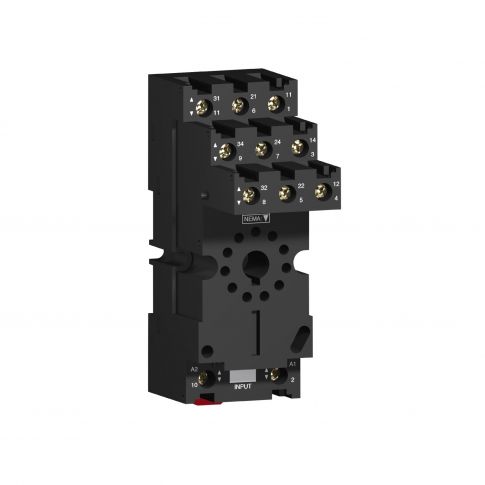

Zelio Relay socket RUZ - separate contact - 12 A - < 250 V - connector - for relay RUMC3.. - RUZSC3M
Out of stock
SKU
RUZSC3M
Details
This Zelio RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A.
This plug-in relay socket is compatible with interface plug-in relay RUM range.
It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail.
It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere.
It is compatible with plug in control relay.
It enables easy installation and connect to relay from its socket.
Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
More Information
| Attribute | Value |
|---|---|
| SKU | RUZSC3M |
| product certifications | CSA, UL |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -40-55 °C |
| range of product | Harmony Relay |
| product or component type | Relay & Power Supply |
| net weight | 0.1 kg |
| standards | IEC 61984 |
| device short name | RUZ |
| range | Plug In Relay |
| product compatibility | plug-in relay RUM with 3 C/O contact |
| [Ith] conventional free air thermal current | 12 A |
| contact terminal arrangement | separate |
| group of product | RUM_3_C/O_CON_SEP_CYL |
| connections - terminals | connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| compatibility code | RUZ |
| marking | CE |
| width | 36 mm |
| dielectric strength | 2500 V |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| tightening torque | < 1 N.m for M3.5 screw(s) |
| [Ue] rated operational voltage | < 250 V |
| fixing mode | by screw (panel), clip-on (35 mm symmetrical DIN rail) |
| sale per indivisible quantity | 10 |
| shape of pin | cylindrical |
