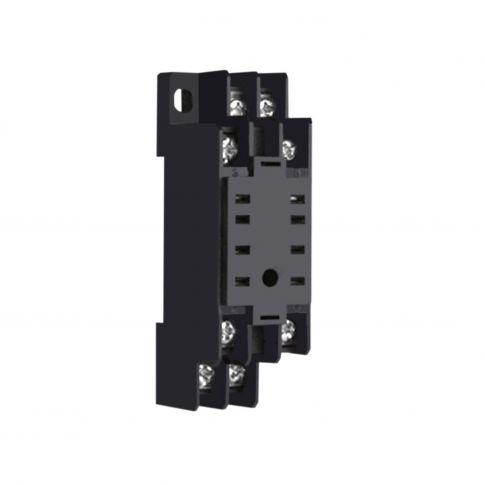

Zelio Relay socket RXZ - mixed contact - 7 A - 250 V - screw clamp - for relay RXM2.. - RXZE1M2C
In stock
SKU
RXZE1M2C
Details
This Zelio RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A.
This plug-in relay socket is compatible with interface plug-in relay RXM range.
It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail.
It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere.
It is compatible with plug in control relay.
It enables easy installation and connect to relay from its socket.
Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
More Information
| Attribute | Value |
|---|---|
| SKU | RXZE1M2C |
| ambient air temperature for storage | -55-85 °C |
| ambient air temperature for operation | -40-55 °C |
| range of product | Harmony Relay |
| product or component type | Relay & Power Supply |
| net weight | 0.034 kg |
| standards | IEC 61984 |
| device short name | RXZ |
| range | Plug In Relay |
| product compatibility | plug-in relay RXM with 2 C/O contact |
| [Ith] conventional free air thermal current | 7 A |
| contact terminal arrangement | mixed |
| connections - terminals | screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, screw clamp terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
| compatibility code | RXZ |
| marking | CE |
| width | 22.5 mm |
| dielectric strength | 2500 V |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| tightening torque | < 0.8 N.m for M3 screw(s) |
| [Ue] rated operational voltage | 250 V |
| fixing mode | by screw (panel), clip-on (35 mm symmetrical DIN rail) |
| sale per indivisible quantity | 10 |
