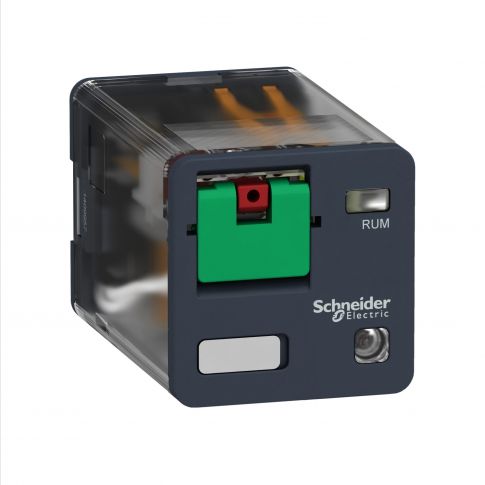

Zelio RUM - Relay universal plug-in relay - 2 C/O - 230 V AC - 10 A - with LED - RUMC22P7
Out of stock
SKU
RUMC22P7
Details
This Zelio RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 10A.
It provides a complete system solution for the most demanding applications.
It also offers one-step lockable test button and “Power On” LED for readiness.
It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere.
The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
Status display with LED: clearly signal both in the day and night.
More Information
| Attribute | Value |
|---|---|
| SKU | RUMC22P7 |
| product certifications | EAC, CSA, UL |
| ambient air temperature for storage | -40-85 °C |
| pollution degree | 3 |
| ambient air temperature for operation | -40-55 °C |
| safety reliability data | B10d = 100000 |
| test levels | level A group mounting |
| range of product | Harmony Relay |
| operating position | any position |
| product or component type | Relay & Power Supply |
| net weight | 0.086 kg |
| standards | CSA C22.2 No 14, UL 508, EN/IEC 61810-1 |
| mechanical durability | 5000000 cycles |
| device short name | RUM |
| range | Plug In Relay |
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC, 10 A at 277 V AC conforming to CSA |
| [Uc] control circuit voltage | 230 V AC |
| [Uimp] rated impulse withstand voltage | 4 kV (1.2/50 µs) |
| contacts material | AgNi |
| operating time | 20 ms at nominal voltage |
| status LED | with |
| compatibility code | RUM |
| vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation, 4 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating |
| dielectric strength | 1500 V AC between contacts with micro disconnection, 2000 V AC between poles with basic, 2500 V AC between coil and contact with reinforced |
| IP degree of protection | IP40 |
| electrical durability | 100000 cycles for resistive load |
| control type | lockable test button |
| device presentation | complete product |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| contacts type and composition | 2 C/O |
| shock resistance | 10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27, 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27 |
| utilisation coefficient | 20 % |
| maximum switching capacity | 2500 VA/280 W |
| series name | Universal |
| rated operational voltage limits | 184...253 V AC |
| operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| protection category | RT I |
| reset time | 20 ms at nominal voltage |
| shape of pin | cylindrical |
| load current | 10 A at 250 V AC, 10 A at 28 V DC |
| drop-out voltage threshold | >= 0.15 Uc AC |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| [Ithe] conventional enclosed thermal current | 10 A at -40-55 °C |
| maximum switching voltage | 250 V conforming to IEC |
| average resistance | 6800 Ohm at 20 °C +/- 15 % |
| average coil consumption in VA | 3-3 at 60 Hz |
