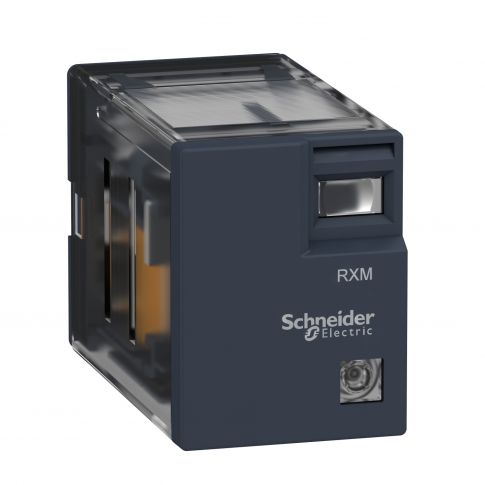

Zelio RXM - Relay Miniature Plug-in relay2L - 4 C/O - 230 V AC - 3 A - without LED - RXM4LB1P7
In stock
SKU
RXM4LB1P7
Details
This Zelio RXM miniature plug-in relay has a control coil voltage of 230V AC and has 4 changeover contacts quadruple pole double throw with a rating of 3A.
It has a large choice of number of contacts for high rated current use with space-saving design.
It also offers one-step lockable test button.
It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere.
The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
More Information
| Attribute | Value |
|---|---|
| SKU | RXM4LB1P7 |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -40-55 °C |
| safety reliability data | B10d = 100000 |
| test levels | level A group mounting |
| range of product | Harmony Relay |
| operating position | any position |
| product or component type | Relay & Power Supply |
| net weight | 0.032 kg |
| standards | CE, EN/IEC 61810-1 (iss. 2) |
| mechanical durability | 10000000 cycles |
| device short name | RXM |
| range | Plug In Relay |
| [Ie] rated operational current | 3 A (AC-1/DC-1) NO conforming to IEC, 1.5 A (AC-1/DC-1) NC conforming to IEC |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 3.6 kV during 1.2/50 µs conforming to IEC 61810-7 |
| contacts material | silver alloy (Ag/Ni) |
| minimum switching current | 10 mA |
| operating time | 20 ms between coil de-energisation and making of the Off-delay contact, 20 ms between coil energisation and making of the On-delay contact |
| contact operation | standard |
| coil interference suppression | without |
| status LED | without |
| compatibility code | RXM |
| vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10-50 Hz)operating conforming to EN/IEC 60068-2-6, 6 gn, amplitude = +/- 1 mm (f = 10-50 Hz)not operating conforming to EN/IEC 60068-2-6 |
| dielectric strength | 2000 V AC between coil and contact, 2000 V AC between poles, 1000 V AC between contacts |
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| electrical durability | 100000 cycles for resistive load |
| control type | without push-button |
| sale per indivisible quantity | 10 |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| minimum switching voltage | 17 V |
| shock resistance | 10 gn for opening conforming to EN/IEC 60068-2-27, 5 gn for closing conforming to EN/IEC 60068-2-27 |
| utilisation coefficient | 20 % |
| maximum switching capacity | 750 VA AC, 84 W DC |
| series name | Miniature |
| rated operational voltage limits | 184...253 V AC |
| operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| protection category | RT I |
| load current | 3 A at 250 V AC, 3 A at 28 V DC |
| drop-out voltage threshold | >= 0.15 Uc AC |
| minimum switching capacity | 170 mW |
| [Ithe] conventional enclosed thermal current | 3 A at -40-55 °C |
| maximum switching voltage | 250 V AC, 250 V DC |
| average resistance | 15000 Ohm network: AC at 20 °C +/- 15 % |
| CAD overall width | 21 mm |
| CAD overall depth | 46 mm |
| CAD overall height | 27 mm |
| average coil consumption in VA | 1.2-1.2 AC |
