Zelio Time on-delay timing relay - 0.1 s..100 h - 120 V AC - 4 OC - REXL4TMF7
Out of stock
SKU
REXL4TMF7
Details

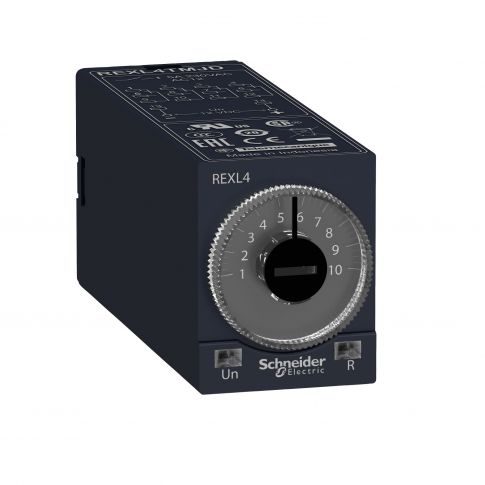

This Zelio REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 120V AC.
It is a plug-in device, meaning it is quick and easy to install with the need for tools.
It also offers a sealable cover, simple and precise settings with rotary trimmers.
It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time.
Status display with 2 LEDs: visually inspect the status of you system without specialized tools.
More Information
| Attribute | Value |
|---|---|
| SKU | REXL4TMF7 |
| product certifications | UL, cUL |
| relative humidity | 95-95 % without condensation conforming to IEC 60068-2-6 |
| ambient air temperature for storage | -40-70 °C |
| ambient air temperature for operation | -20-60 °C |
| resistance to electrostatic discharge | 6 kV in contact conforming to EN/IEC 61000-4-2 level 3, 8 kV in air conforming to EN/IEC 61000-4-2 level 3 |
| range of product | Zelio Time |
| product or component type | Relay & Power Supply |
| net weight | 0.05 kg |
| standards | EN 61000-6-2, EN/IEC 60601-1, 89/336/EEC, 93/68/EEC, EN/IEC 61812-1, EN/IEC 60601-2, 73/23/EEC, EN 50081-2 |
| mechanical durability | 10000000 cycles |
| range | Timer Relay |
| contacts material | cadmium free |
| minimum switching current | 100 mA |
| [Us] rated supply voltage | 120 V AC 50/60 Hz |
| immunity to microbreaks | 5 ms |
| repeat accuracy | +/- 0.5 % |
| discrete output type | relay |
| functionality | on-delay timing |
| setting accuracy of time delay | 10 % at full scale at 25 °C conforming to EN/IEC 61812-1 |
| vibration resistance | 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| dielectric strength | 2 kV for 1 mA/1 minute at 50 Hz conforming to EN/IEC 60601-1, 2 kV for 1 mA/1 minute at 50 Hz conforming to EN/IEC 61812-1 |
| IP degree of protection | IP50 conforming to IEC 60529 |
| [In] rated current | 5 A AC |
| electrical durability | 100000 cycles at 250 V AC resistive |
| local signalling | 1 LED (red) for output in operation, 1 LED (yellow) for power ON |
| fixing mode | plug-in (socket) |
| [Ui] rated insulation voltage | 250 V conforming to IEC 255 Group C, 250 V conforming to VDE 0010 |
| contacts type and composition | 4 C/O |
| maximum switching capacity | 4 x 5 A |
| reset time | 250 ms after time delay, on de-energisation, 50 ms during time delay, on de-energisation |
| time delay range | 1...10 min, 10...100 h, 0.1...1 s, 6...60 s, 6...60 min, 1...10 s, 1...10 h |
| surge withstand | 2 kV conforming to EN/IEC 61000-4-5 level 3 |
| resistance to electromagnetic fields | 10 V/m conforming to EN/IEC 61000-4-3 level 3 |
| resistance to fast transients | 2 kV conforming to EN/IEC 61000-4-4 level 3 |
| time delay type | A |
| disturbance radiated/conducted | class B conforming to EN 55022 (EN 55011 group 1) |
| power consumption in VA | 2.6 VA |
| component name | REXL |
| temperature drift | 0.05 %/°C |
| creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| voltage range | 0.85...1.15 Us |
| voltage drift | +/- 0.2 %/V |
| temporary permissible current | 10 A for < 10 s |
| immunity to voltage dips | >= 95 % / 1 s conforming to EN/IEC 61000-4-11, 30 % / 10 ms conforming to EN/IEC 61000-4-11, 60 % / 100 ms conforming to EN/IEC 61000-4-11 |
| output overvoltage protection | 2 J |
| immunity to radioelectric fields | 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 level 3 |
