Schneider Electric

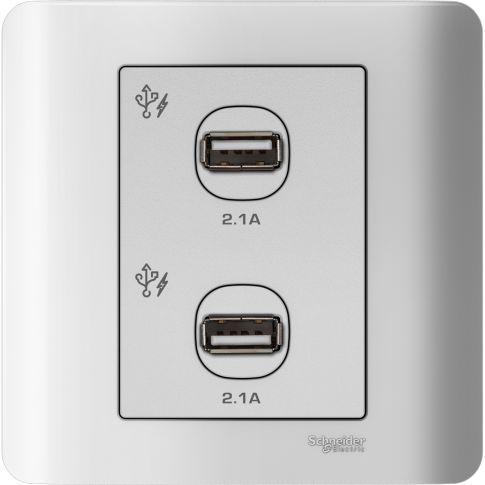

Zencelo - 2 x 2.1A USB Charger - White - E8432USB_WE
Out of stock
SKU
E8432USB_WE
More Information
| Attribute | Value |
|---|---|
| SKU | E8432USB_WE |
| range | Zencelo |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| colour tint | white |
| [Ue] rated operational voltage | 100/240 V AC 50/60 Hz |
| IP degree of protection | IP20 |
| device mounting | flush |
| embedding depth | 29.3 mm |
| surface finish | glossy |
| material | silicone rubber: cover, PC (polycarbonate): grid plate, PA (polyamide) 6: housing |
| ambient air temperature for storage | -5-60 °C |
| clamping connection capacity | 2.5 mm² for stranded cable(s), 2.5 mm² for flexible cable(s), 2.5 mm² for rigid cable(s), 1.5 mm² for stranded cable(s), 1.5 mm² for flexible cable(s), 1.5 mm² for rigid cable(s) |
| depth | 39 mm |
| height | 87 mm |
| width | 87 mm |
| net weight | 0.1113 kg |
| device presentation | mechanism |
| fixing mode | screw |
| relative humidity | 10-90 % |
| environmental characteristic | liquid soap, alcohol |
| surface treatment | untreated |
